FLEXIBLE INTERMEDIATE BULK CONTAINERS
Big Bag moves your company into
the future of packaging and maximizes the efficiency of
material containment, shipping operations and unit cost
control. Each moisture-resistant flexible bulk container is
manufactured from woven polypropylene fabric with webbed
lifting straps. Static inhibitors and ultraviolet treatment
are also added. Big Bags are engineered to accommodate dry or
semi moist flowable materials. Available options include a
variety of fill and discharge spouts, as well as crane loops
for single point pick up, rope locks for controlled remote
discharge and inserted polyethylene liners. In addition, Big
Bag Corporation has the capability of imprinting your company
logo, information warning labels or customized specifications.
Document pockets may be added to each Big Bag.
Products currently being
shipped in our Big Bags include mineral products, foodstuffs,
DMT, chemicals agrochemicals and feeds, cement, refractory
products and recyclables. Big Bag bulk containers with liners
are an excellent choice for management of waste.
Why
Big Bag?
Competitively priced with other
industrial packaging, Big Bags are the most cost efficient
means of utilizing transportation and storage. Big Bags
may be stacked without pallets minimizing wasted space.
Rail cars, flat beds and closed trailers, barges and ships can
be loaded to maximum capacity. A forklift can
accommodate most loading and storage applications.
Important Advantages:
1. Safety - Big Bag containers have a 6 to 1 lifting safety
factor. With tubular design the risk of side seam failure has
been reduced.
2. Cleaner environment - Fill and discharge spouts control
dust during filling and emptying reducing the risk of fire and
providing a cleaner and healthier work place.
3. Less risk of damage - An inserted polyethylene liner and/or
lamination makes the Big Bag moisture resistant as well as
stronger than other flexible containers.
4. Lower costs – Rapid filling and less shipping damage with
these containers reduce operating costs, and a collapsed bag
stores in only 5% of its filled volume.
5. Enhanced appearance – White (FDA Approved), clean Big Bag
containers with high quality printing of your name or logo
create a positive presentation.
Big Bag flexible intermediate bulk containers are being
integrated into material handling systems worldwide. Call now
to learn how you can reduce costs, save space, and improve
your product shipments with this modern packaging system.
STANDARD FEATURES
- Anti-sift tubular woven polypropylene
- Fabric weights of 3 oz., 5 oz., 6.5 oz.,
and 8 oz.
- White (FDA approved)
- UV & static inhibitors
- Base size: 35” x 35”
- Spout size: 14” diameter x 17” long
- Lift loops: Four 10” long @ 5000 lb.
test
- Moisture-resistant coated fabric

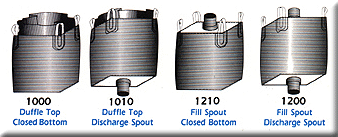

Configurations:
B – duffle top, closed bottom
BD – duffle top, discharge spout
V1 - fill spout. Closed bottom
V2 - fill spout, discharge spout
Standard Base Dimensions
Height (inches)
Volume (cu. Ft)
30
25
42
35
54
45
66
55
78
65
Big Bag containers are shipped everywhere!
OPTIONAL FEATURES:
-
Base dimensions: 41” x
41”, 37.4” x 37.4”, 36.2” x 36.2”: 34.5” x
34.5”
-
U.N. approved and certified
-
Black or yellow
-
Specially designed lift
loops
-
Crane loops for single
point pickup
-
Rope lock for controlled
remote discharge
-
Glued or inserted
Polyethylene liners
-
Offset printing
-
Document holders
Optional Base Dimensions
U-Panel (inches)
Circular (inches)
31 x 31
37 x 37
35 x 41
37 x 37
41 x 41
Custom sizes and designs
available on request. Design approval within one week. New
designs have an 8 week cycle time. Modifications from standard
designs have a 3 – 4 week cycle time.
No minimum order is required for Big Bags stock items. For
special orders, a minimum order of 25 units is required.
Discount pricing on orders of significant quantity is
available.
The specifications listed above are correct
to the best of our knowledge. Except when agreed to in writing
for specific conditions of use, no warranty or guarantee,
either expressed or implied, is made regarding performance
since specific circumstances of use and handling are generally
beyond our control.
TO ORDER
BIG BAG CORPORATION
P.O. Box 1600
Wilkes-Barre, PA 18705
Phone: 1-800-752-7324 / 570-823-0233 / Fax: 570-829-4515
